LEX PRODUCTS — CANADIAN DISTRIBUTOR

LEX power distribution units & MEPDIS-R

As a Canadian LEX Products distributor, Primex supplies power distribution equipment, military cables, microgrid components, portable work lights and cable protection. Primex supplies the full LEX range—contact our Canadian team if the item you need is not yet shown.

Your Canadian LEX Products distributor

Primex supplies LEX power distribution units (PDUs), MEPDIS-R distribution boxes and feeder cables for deployable camps and temporary installations. Compare specifications and ordering references to select the equipment for your application.

Canadian configurations & included equipment

The Canadian 30 kW ECU distribution box is DB100MA-P1021Q-01S3-CDN, NSN 6110-20-011-3700. Primex supplies 100 A feeder cables with 2 AWG conductors. Match the Canadian ordering reference rather than selecting solely by the box’s kW designation.

The MEPDIS-R 5 kW indoor and outdoor boxes include cord sets. The other distribution boxes do not include their associated feeder cables. Primex can quote the cables, connectors and accessories required for your configuration separately.

Our support includes equipment selection, modifications, repair and overhaul, and equipment training. Explore Primex services and training.

LEX MEPDIS-R distribution equipment · 100 A, 2 AWG feeder cable · Power distribution planner

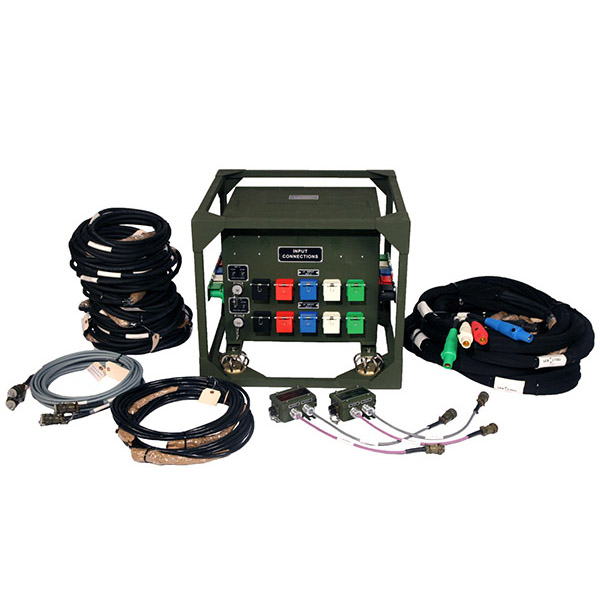

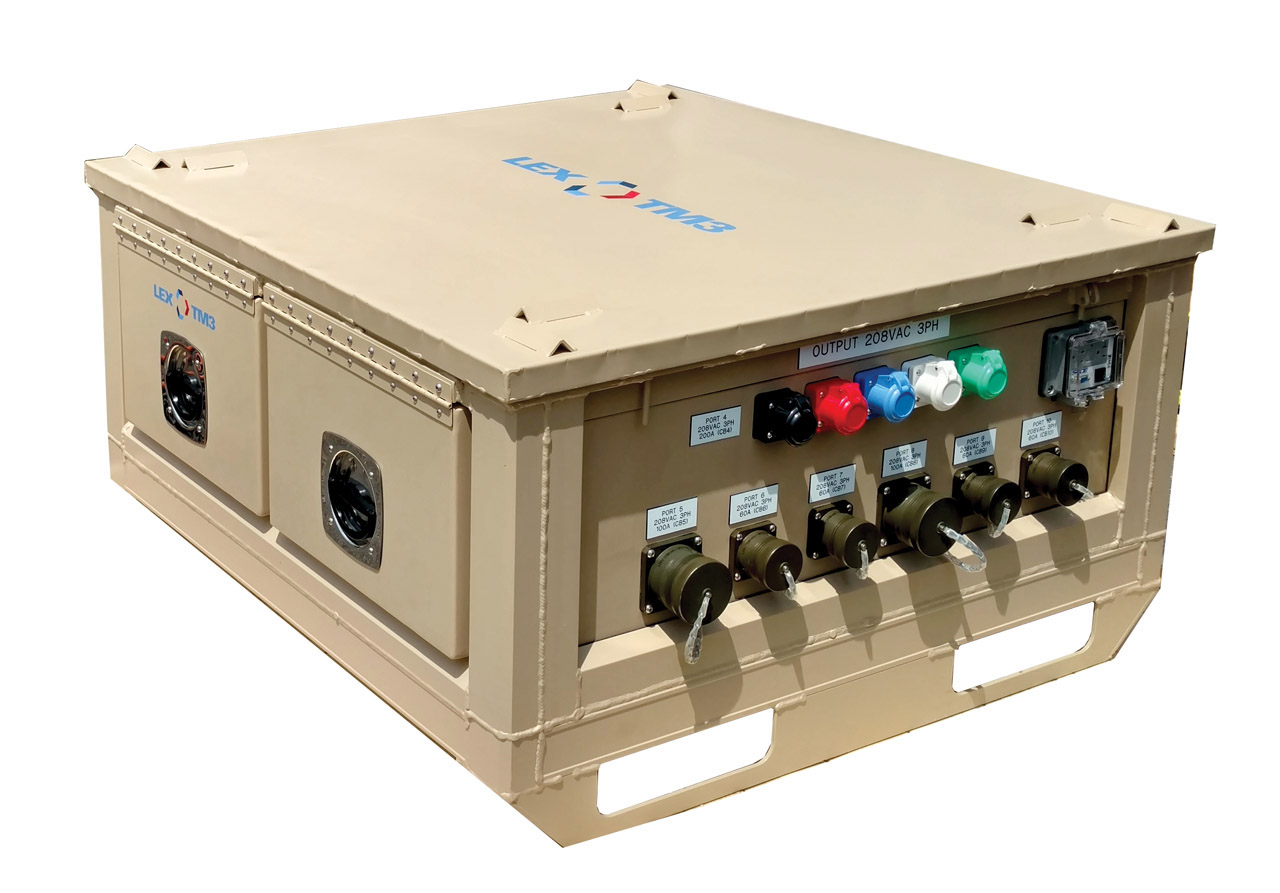

Microgrids, energy storage & power management

Equipment for compatible generator control, energy storage and power management.

MEPDIS-R distribution

Distribution boxes for deployable power systems. Canadian ordering references are shown where confirmed.

ProductPart numberEnquiry

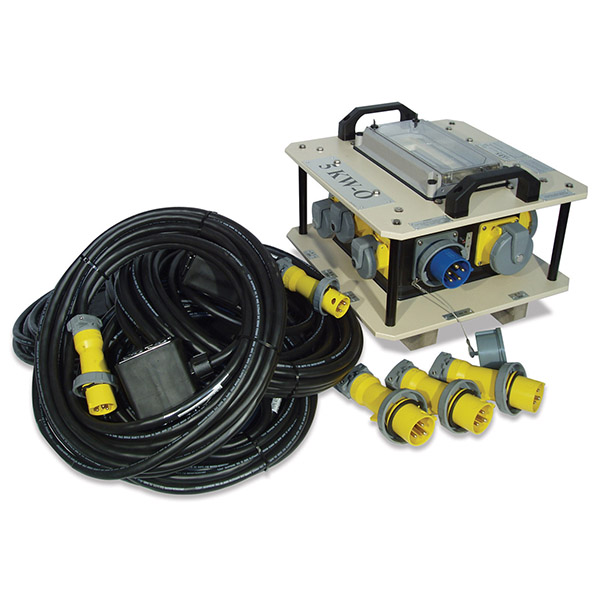

USMC MEPDIS-R 5kW Outdoor Box with Cord Sets and Spare PlugsUSMC MEPDIS-R 5kW Outdoor Box with Cord Sets and Spare PlugsDB-30NA-A22-S3
NSN 6110-01-532-1821

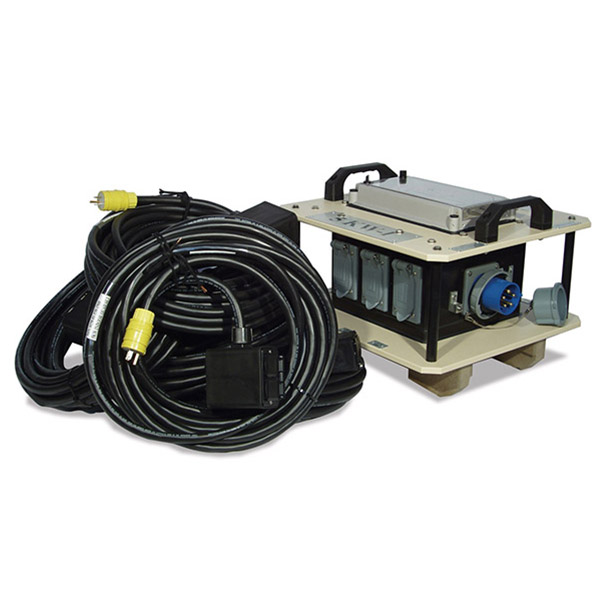

USMC MEPDIS-R 5kW Indoor Box with Cord SetsUSMC MEPDIS-R 5kW Indoor Box with Cord SetsDB-30NA-AQQ-S3
NSN 6110-01-532-1794
30 kW ECU Distribution Box (CDN)30 kW ECU Distribution Box (CDN)DB100MA-P1021Q-01S3-CDN
NSN 6110-20-011-3700

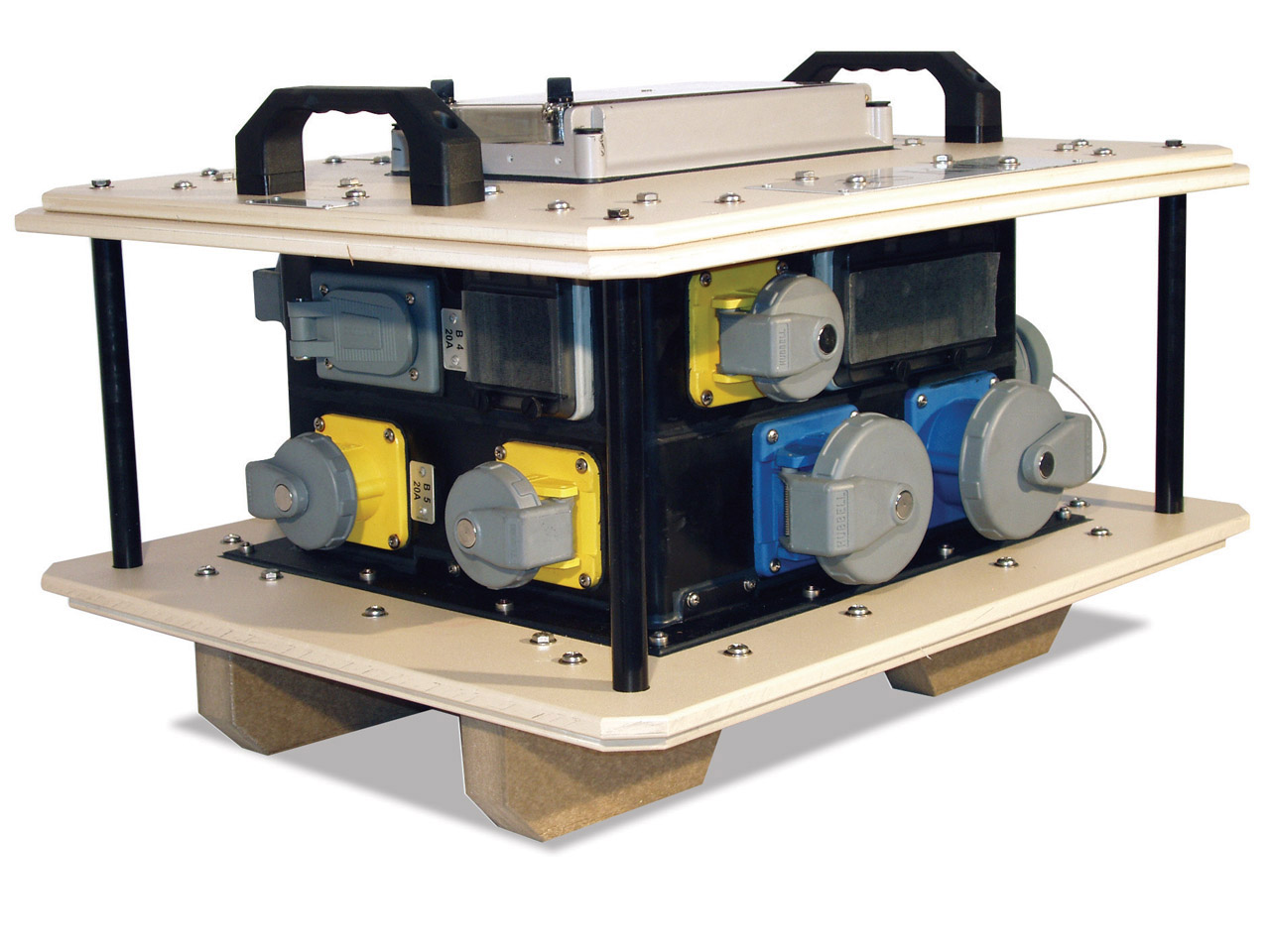

USMC MEPDIS-R 15kW Distribution BoxUSMC MEPDIS-R 15kW Distribution BoxDB-60MA-F22QS3
NSN 6110-01-532-1764

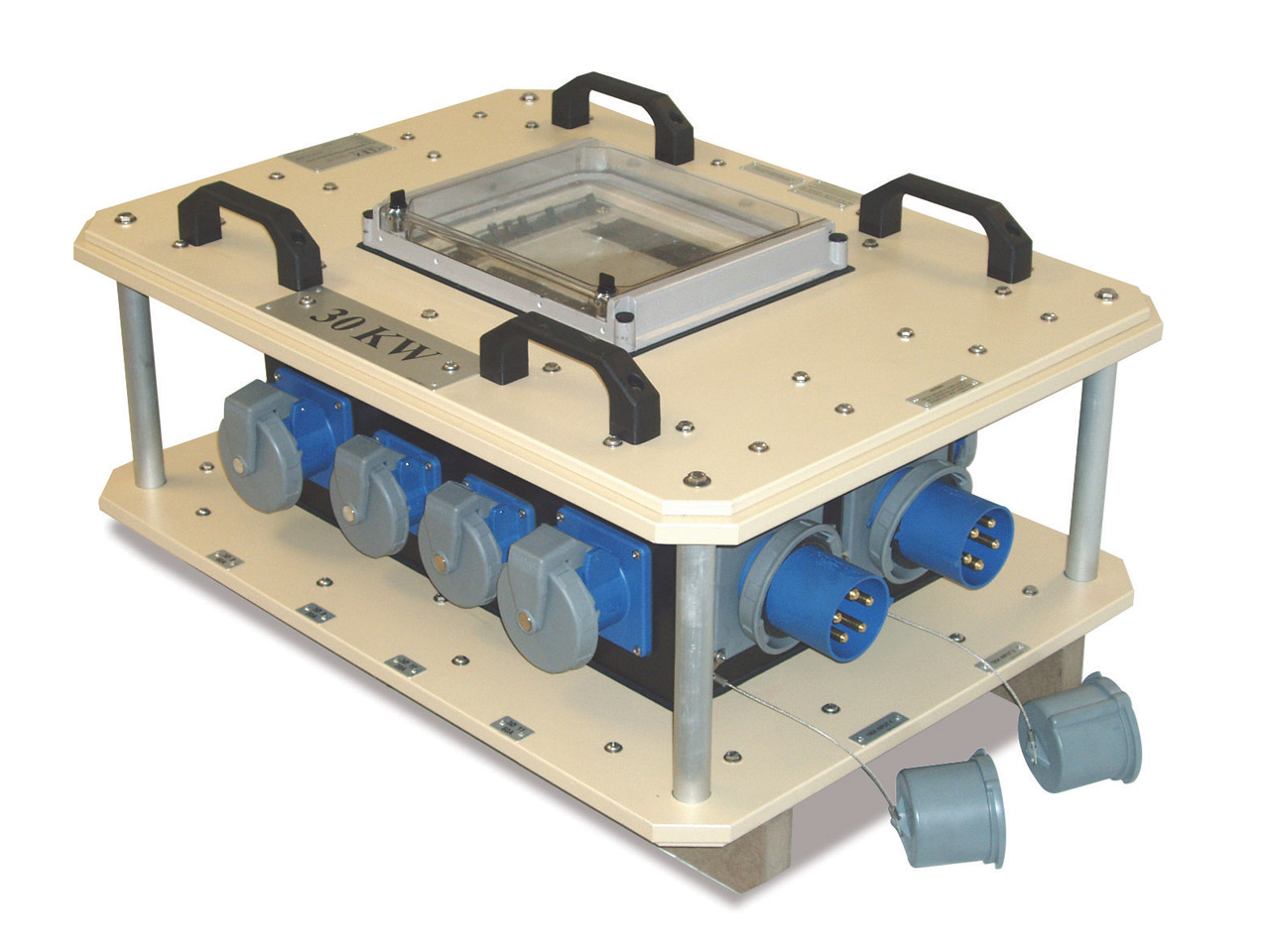

USMC MEPDIS-R 30kW Distribution BoxUSMC MEPDIS-R 30kW Distribution BoxDB100MA-P22QS3
NSN 6110-01-532-1809

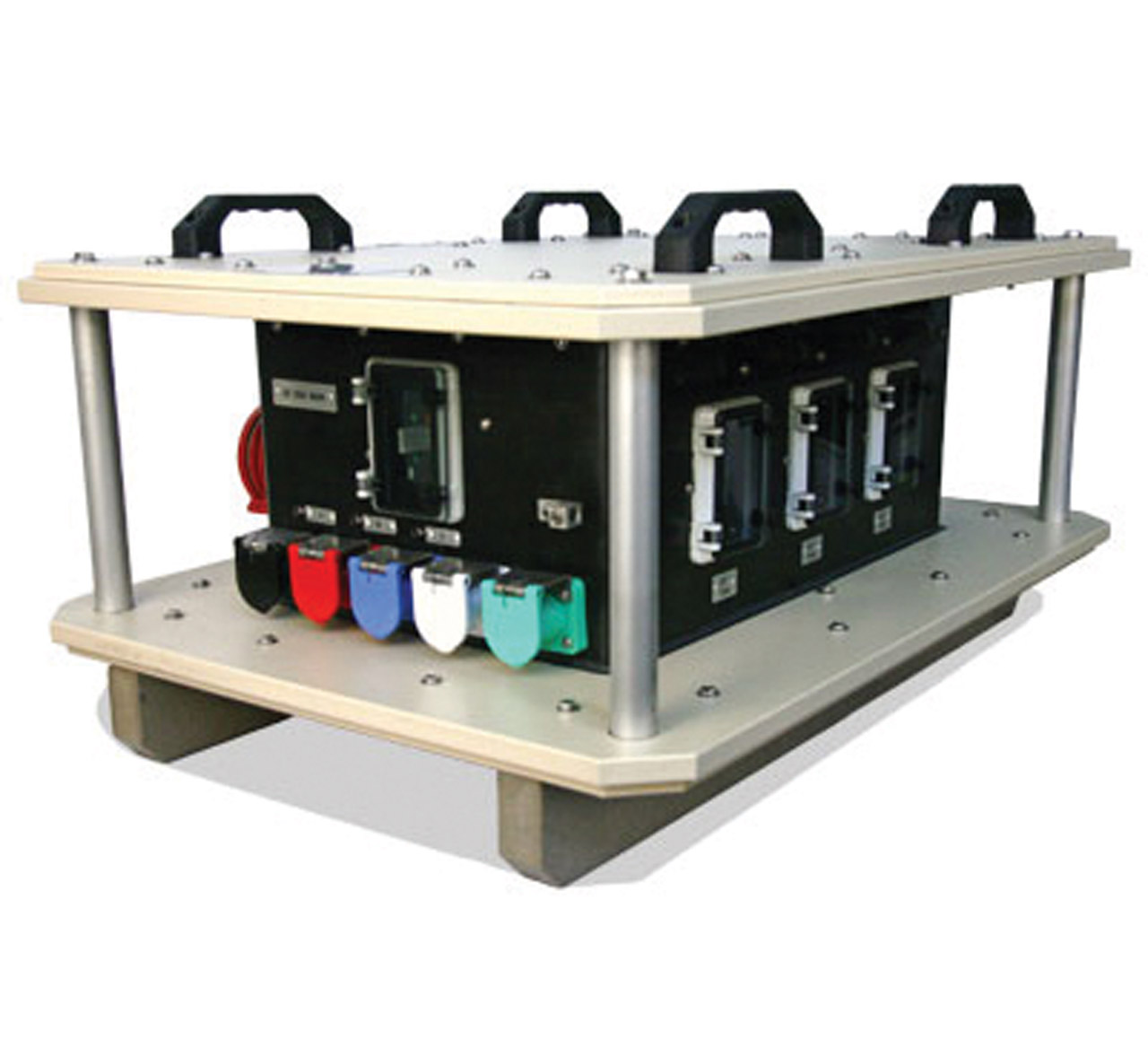

USMC Tactical Water Purification System Box (TWPS)USMC Tactical Water Purification System Box (TWPS)DB200M2C-P3S415-S3

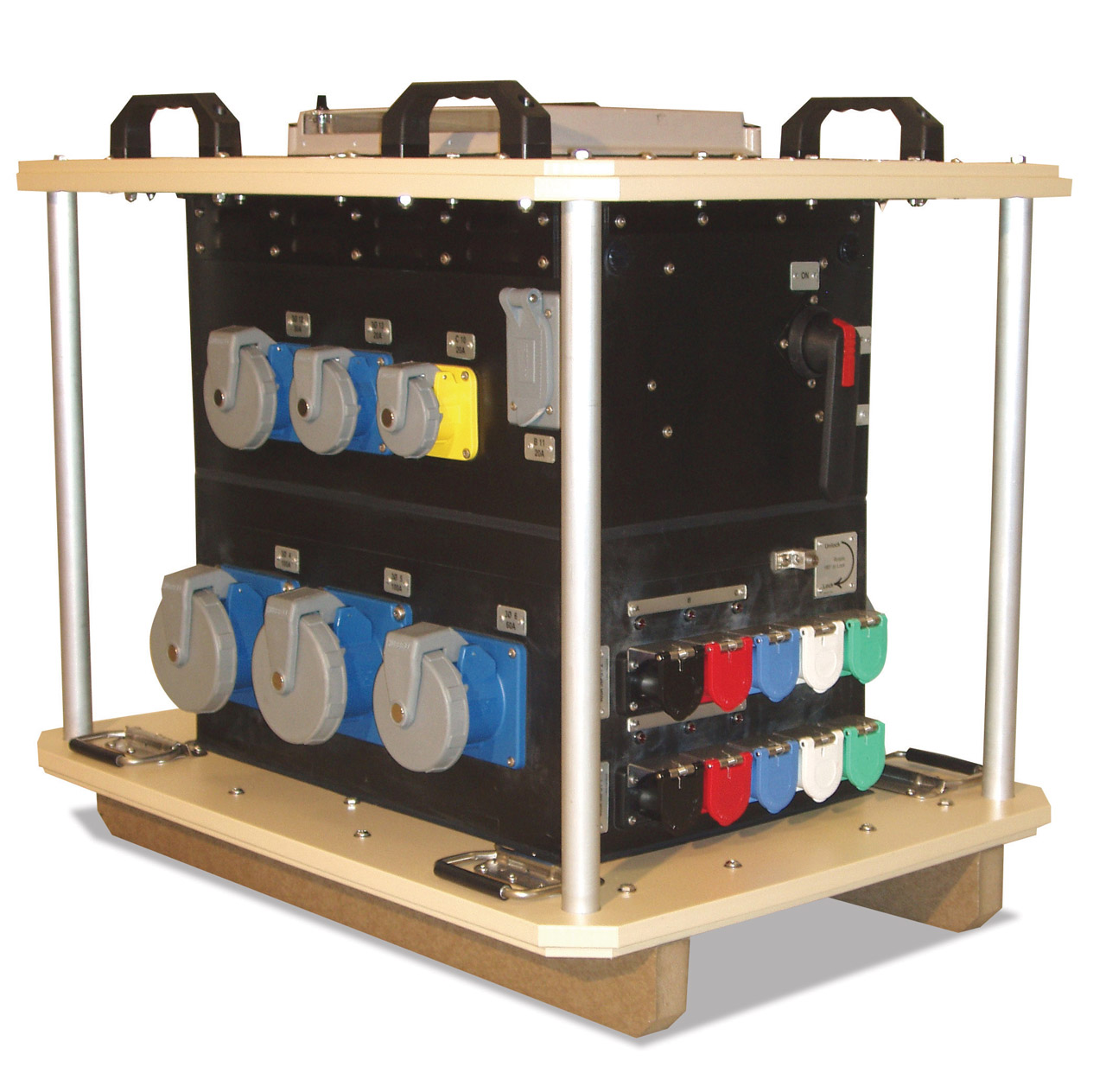

USMC MEPDIS-R 100kW Distribution BoxUSMC MEPDIS-R 100kW Distribution BoxDB350MA-P2WAS3
NSN 6110-01-532-1835

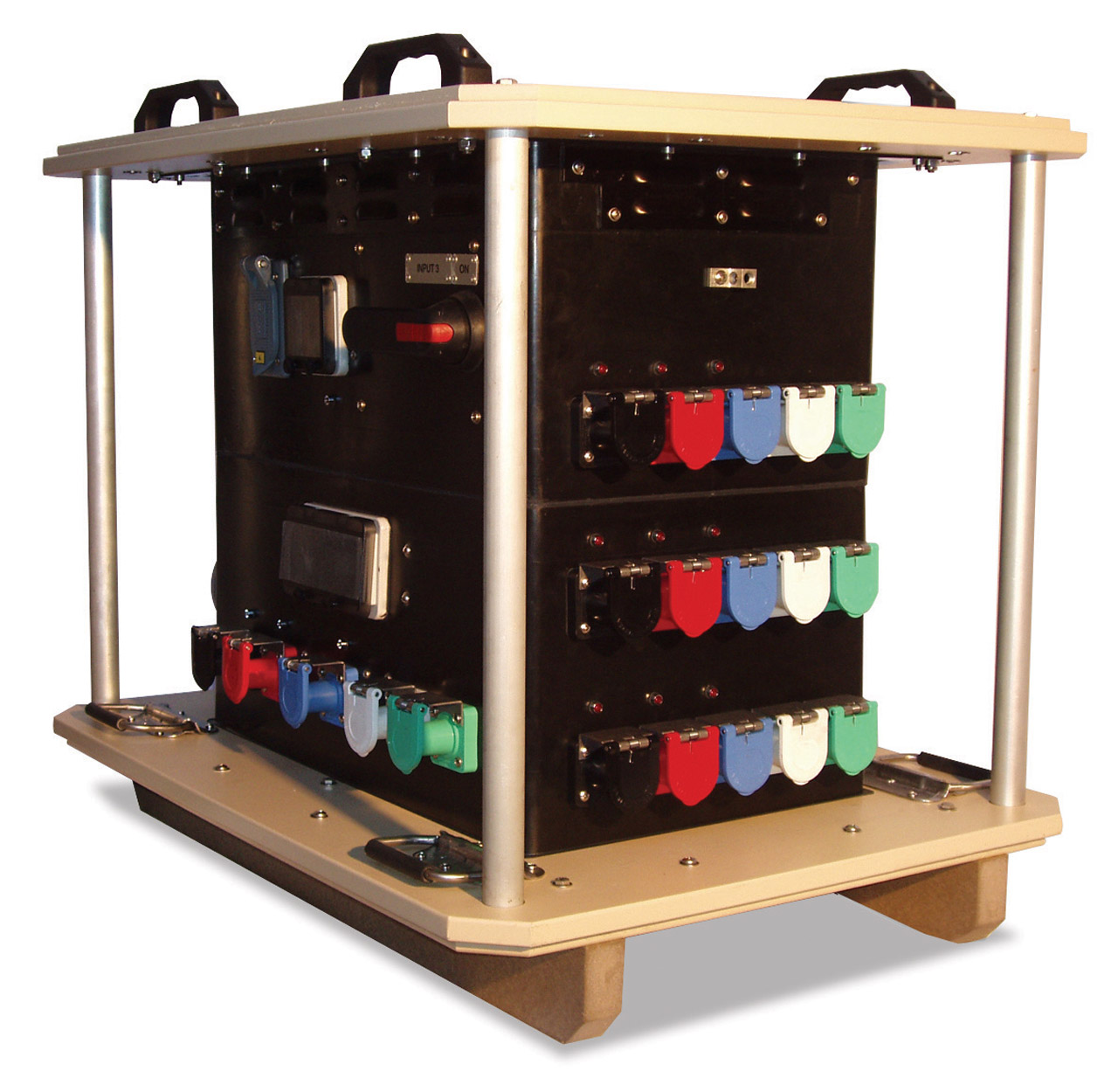

USMC MEPDIS-R 300kW Distribution BoxUSMC MEPDIS-R 300kW Distribution BoxDB350MA-P2WQS3
NSN 6110-01-532-1776
30 kW ECU Distribution Box (CDN)30 kW ECU Distribution Box (CDN)Representative imageDB100MA-P1021Q-01S3-CDN
NSN 6110-20-011-3700
30 kW ECU Distribution Box — U.S. 40 A Branch Version30 kW ECU Distribution Box — U.S. 40 A Branch VersionRepresentative imageDB100MA-P1021Q-01S3
NSN 6110-01-586-2426

PDISE, Air Force & field distribution

Complete systems and individual distribution units are listed separately. Check the scope of supply on each product page.

ProductPart numberEnquiry
200 A Military Mobile Distribution Box200 A Military Mobile Distribution BoxRepresentative imageDB200MP-PQ66S3
NSN 6110-01-554-7406
25 kW Air Force Style Distribution Box25 kW Air Force Style Distribution BoxRepresentative image6110-01-244-3209
NSN 6110-01-244-3209
30 kW Air Force Style Distribution Box30 kW Air Force Style Distribution BoxRepresentative image6110-01-236-5890
NSN 6110-01-236-5890
60 kW Air Force Style Distribution Box60 kW Air Force Style Distribution BoxRepresentative image6110-01-237-4637
NSN 6110-01-237-4637
100 kW Air Force Style Distribution Box100 kW Air Force Style Distribution BoxRepresentative image6110-01-248-6671
NSN 6110-01-248-6671
200 kW Air Force Style Distribution Box200 kW Air Force Style Distribution BoxRepresentative image6110-01-236-5889
NSN 6110-01-236-5889
PDISE M200 Distribution SystemPDISE M200 Distribution SystemRepresentative image13229E6350
NSN 6150-01-308-5672
PDISE M200 Distribution UnitPDISE M200 Distribution UnitRepresentative image13229E6300
NSN 6150-01-598-5455
PDISE M100 Distribution SystemPDISE M100 Distribution SystemRepresentative image13229E6351
NSN 6150-01-308-5671
PDISE M100 Distribution UnitPDISE M100 Distribution UnitRepresentative image13229E6325
NSN 6150-01-598-5282
PDISE M60 Distribution SystemPDISE M60 Distribution SystemRepresentative image13229E6352
PDISE M60 Distribution UnitPDISE M60 Distribution UnitRepresentative image13229E6335
NSN 6150-01-598-5289
PDISE M40 Distribution SystemPDISE M40 Distribution SystemRepresentative image13229E6353
NSN 6150-01-307-9446
PDISE M40 Distribution UnitPDISE M40 Distribution UnitRepresentative image13229E6345
NSN 6150-01-598-4796
PDISE M46 Electrical Utility AssemblyPDISE M46 Electrical Utility AssemblyRepresentative image13226E7046
NSN 6150-01-208-9751
15kW Air Force Style Distribution Box15kW Air Force Style Distribution Box6110-01-236-3829
NSN 6110-01-236-3829

PowerRAMP & CableGuard cable protection

Cable crossovers and drop-over covers for temporary cable routes.

Military cable assemblies & adapters

Class L, IEC pin-and-sleeve, cam feeder and communication assemblies. Primex supplies 2 AWG conductors for 100 A feeder cables.

ProductPart numberEnquiry
Cam-Lock Cable Tie-InCam-Lock Cable Tie-InRepresentative imageTS60WF-10
NSN 6150-01-695-2768

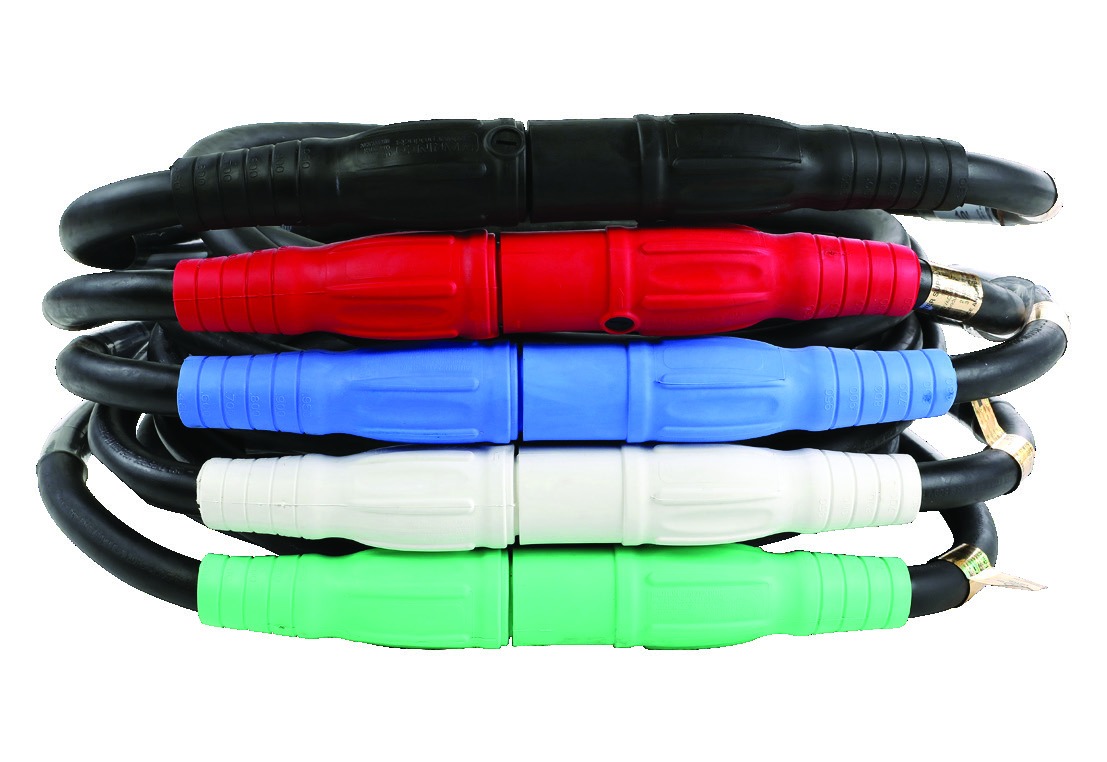

25 ft Cam-Lock Feeder Cable25 ft Cam-Lock Feeder CableRepresentative imageFS60P5W-25
NSN 6150-01-529-7900
50 ft 100 A Feeder Cable — 2 AWGPF050A-EWJE-PV-PV
NSN 6150-01-687-0455

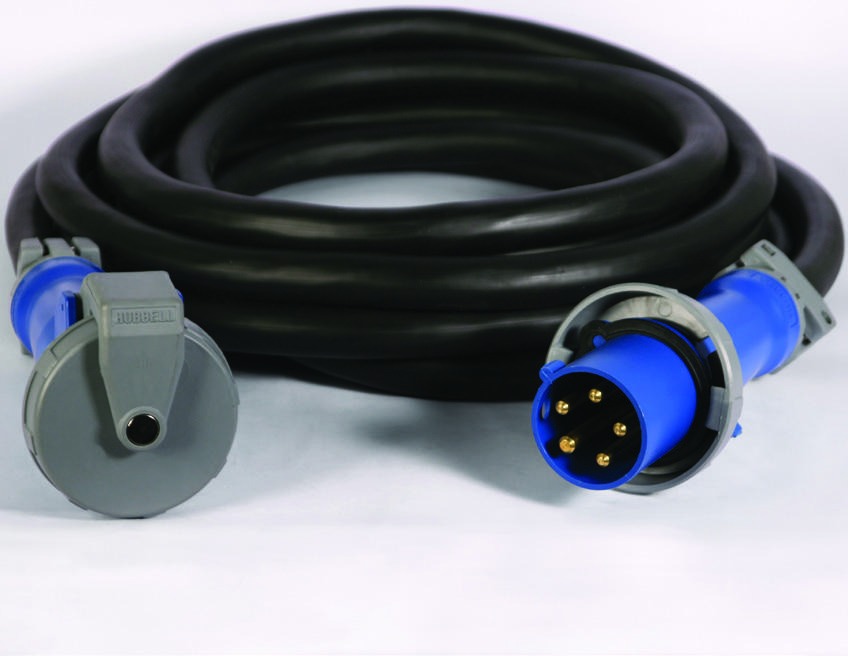

50 ft 30A Cable50 ft 30A CableRepresentative imagePE105SE-50-530
NSN 6150-01-529-8428

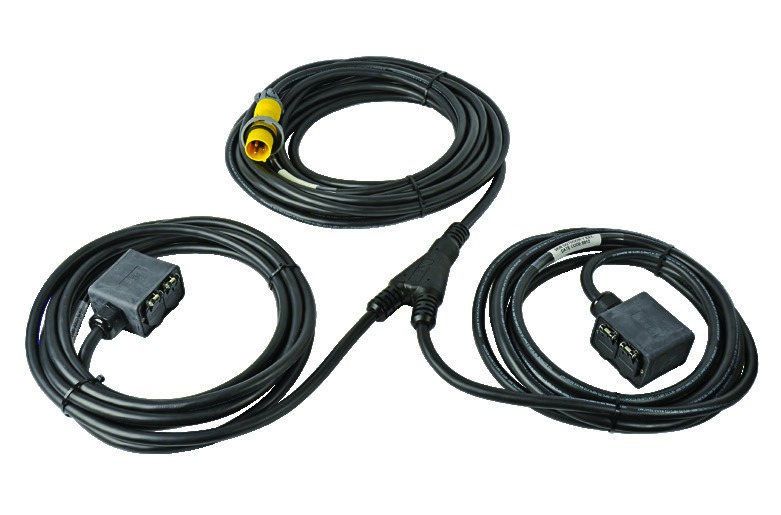

Outdoor Y CableOutdoor Y Cable2FERQUAD-USMC
NSN 6150-01-540-3519
50 ft 60A Feeder Cable50 ft 60A Feeder CableRepresentative imagePE6/5P-50-560
NSN 6150-01-529-7674
25 ft Three-Receptacle Extension Cord50123B
NSN 6150-01-694-7784

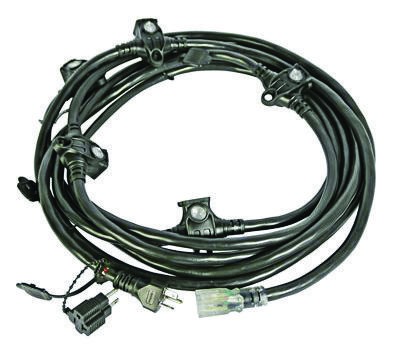

50 ft Six-Receptacle Extension Cord50 ft Six-Receptacle Extension Cord50112BA
NSN 6150-01-694-7994
50 ft Watertight Extension CablePE7000-50-515-WG
NSN 5995-01-694-7742
Pin and Sleeve MIL STD AdapterADPEG560-MIL
NSN 5995-01-694-9086

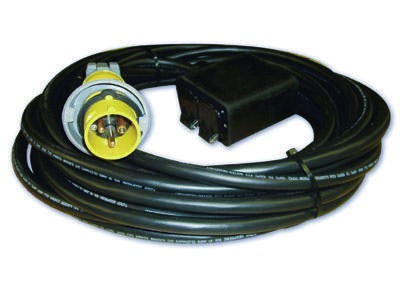

Outdoor Cord SetsOutdoor Cord SetsDB20QD50SEPS
NSN 6150-01-530-7352

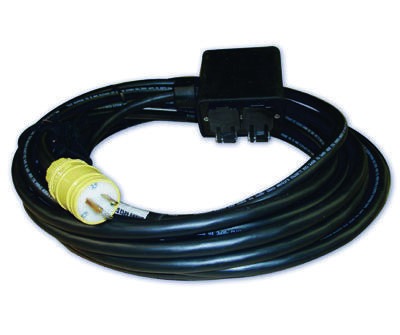

Indoor Cord SetsIndoor Cord SetsDB20QD50SE515W
NSN 6150-01-530-1960
60A Class L Cable Extension60A Class L Cable ExtensionRepresentative imageTM77060-XXXC
100A Class L Cable Extension100A Class L Cable ExtensionRepresentative imageTM77100-XXXC
200A Class L Cable Extension200A Class L Cable ExtensionRepresentative imageTM77200-XXXC
5 ft 4/0 AWG Five-Wire Female Cam Tailset5 ft 4/0 AWG Five-Wire Female Cam TailsetTS60WF-5
NSN 6150-01-687-3245
Reverse Y Cam Splitter Cable SetSS6000-R-KIT
NSN 6150-01-687-2689
60 A Pin & Sleeve MIL STD Adapters60 A Pin & Sleeve MIL STD AdaptersRepresentative imageADP560-MIL
NSN 6150-01-529-7908
60 A MIL-DTL-22992 Class L Tie-ins60 A MIL-DTL-22992 Class L Tie-insRepresentative imageTM76060-XXXC
60 A Commercial Class L Cable Extensions60 A Commercial Class L Cable ExtensionsRepresentative imageTML77060-XXXC
60 A Commercial Class L Tie-Ins60 A Commercial Class L Tie-InsRepresentative imageTML76060-XXXC
60 A EverGrip® MIL-DTL-22992 Class L Overmoulded Cable Extensions60 A EverGrip® MIL-DTL-22992 Class L Overmoulded Cable ExtensionsRepresentative imageMILEG60-XXX
60 A EverGrip® MIL-DTL-22992 Class L Overmoulded Tie-Ins60 A EverGrip® MIL-DTL-22992 Class L Overmoulded Tie-InsRepresentative imageMILEGTF60-XXX
60 A Pin & Sleeve MIL STD Adapters60 A Pin & Sleeve MIL STD AdaptersRepresentative imageADPMIL-560
NSN 6150-01-529-8063
60 A IEC 60309 Pin & Sleeve Tie-Ins60 A IEC 60309 Pin & Sleeve Tie-InsRepresentative imageTL6/5PF-XXX-560
200 A MIL-DTL-22992 Class L Tie-ins200 A MIL-DTL-22992 Class L Tie-insRepresentative imageTM76200-XXXC
200 A Commercial Class L Cable Extensions200 A Commercial Class L Cable ExtensionsRepresentative imageTML77200-XXXC
Cam-Type Feeder Sets for Military and Commercial UseCam-Type Feeder Sets for Military and Commercial UseRepresentative imageFS1/0W5W-XXX
400 A Cam-Type Feeder Sets for Military and Commercial Use400 A Cam-Type Feeder Sets for Military and Commercial UseRepresentative imageFS60W5W-XXX
Communication Cable Between PCIsCommunication Cable Between PCIsRepresentative imageTM77151-XXXC-0002
Communication Cable Between PCIs and FeederCommunication Cable Between PCIs and FeederRepresentative imageTM77151-XXXC-0001
CAM Pigtail SetCAM Pigtail SetRepresentative imageTM76200-XXX-CL5-5001
Ship-to-Shore Viking AdapterShip-to-Shore Viking AdapterRepresentative imageADPVIK-CAM-xxxFT
100 A Green Cam Extension100 A Green Cam ExtensionRepresentative imageFE3000-15-E
NSN 6150-01-539-1409
100 A Class L Tie-In Cable100 A Class L Tie-In CableRepresentative imageTM76100-04C
100 A Commercial Class L Feeder Cable100 A Commercial Class L Feeder CableRepresentative imageTML77100-XXXC
100 A Commercial Class L Tie-In Cable100 A Commercial Class L Tie-In CableRepresentative imageTML76100-04C
100 A EverGrip Class L Feeder Cable100 A EverGrip Class L Feeder CableRepresentative imageMILEG100-XXX
100 A EverGrip Class L Tie-In Cable100 A EverGrip Class L Tie-In CableRepresentative imageMILEGTF100-4
100 A Green Cam Tie-In — Female100 A Green Cam Tie-In — FemaleRepresentative imageTL300F-15-E
NSN 6150-01-539-1408
100 A Green Cam Tie-In — Male100 A Green Cam Tie-In — MaleRepresentative imageTL300M-15-E
NSN 6150-01-539-1405

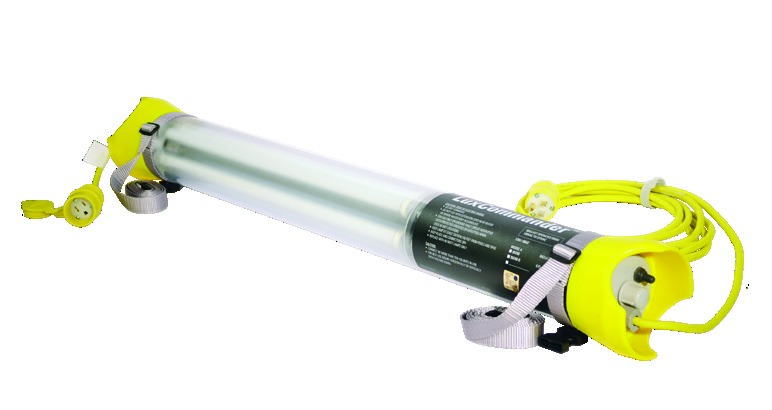

LuxCommander portable work lights

LED, fluorescent and emergency-backup lighting for maintenance, inspection and temporary work areas.

System components & spares

Accessories and replacement components for LEX equipment.

ProductPart numberEnquiry

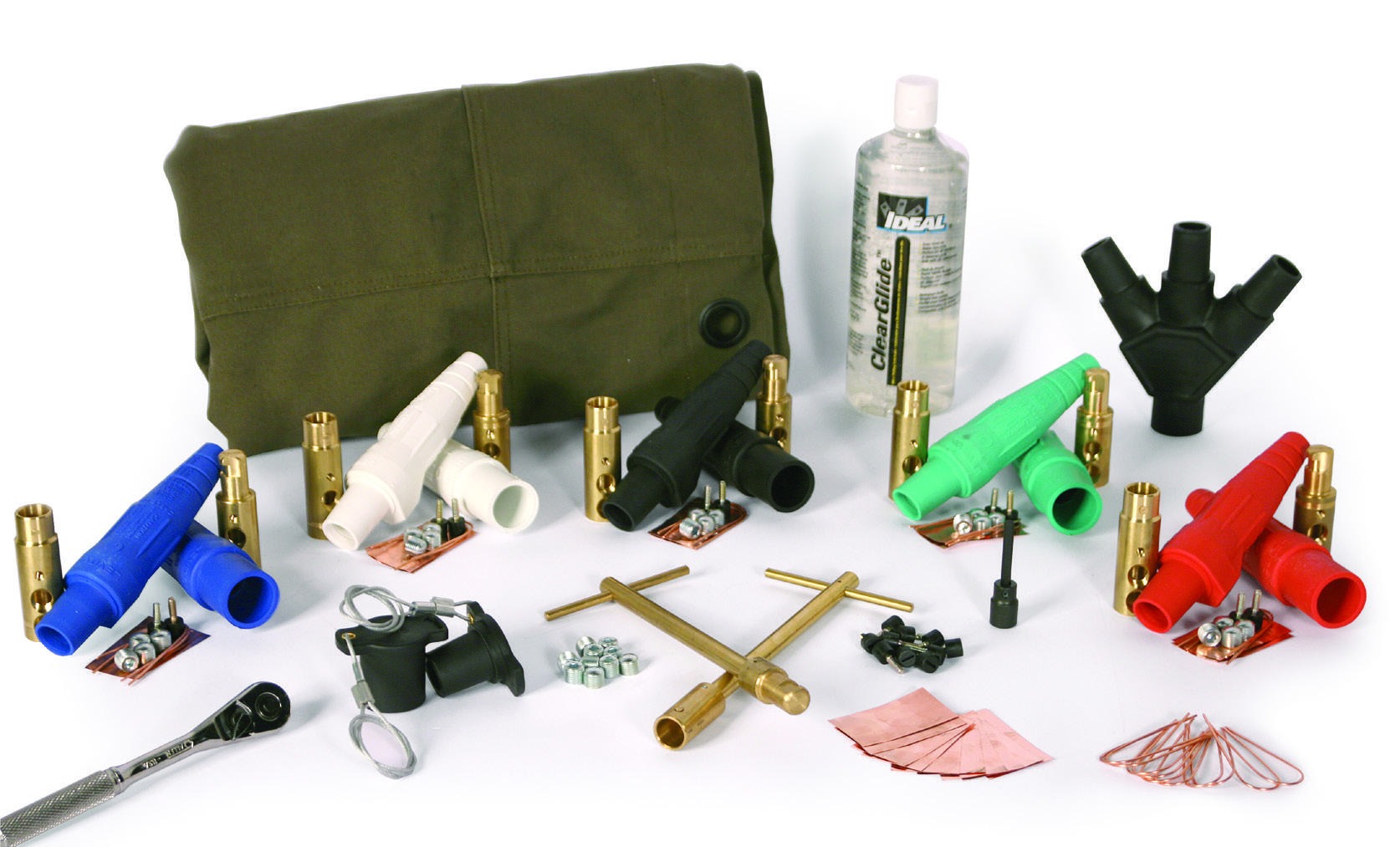

Series 16 Spare Parts and Tools KitSeries 16 Spare Parts and Tools KitRepresentative imageKIT-SERIES16
NSN 5999-01-534-6389
HDPE Handle SpacersHNDL-SPACER
Input CoverPC530-ASY
Polyester CoverA31-DTCOV-ASY
Input Connector Cover AssemblyPC60-ASY
Input Connector Cover AssemblyPC100-ASY
Breaker Cover AssemblyA71-DTCOV-ASY
10-Position Breaker Cover900610

Need another LEX product or configuration?

Send the part number, NSN or equipment description. For cable assemblies, include the mating connections, rating, length and quantity. Primex will confirm the configuration and included components when quoting.

Request equipment or cables
Custom power distribution unit with protected outlets and carrying frame
CUSTOM POWER DISTRIBUTION

Your rating. Your inputs. Your outputs.

Need a distribution box built around your equipment? Primex helps define and coordinate custom power distribution boxes, cable assemblies and complete distribution systems.

Tell us the required amperage or kW, voltage and phase, how many inputs and outputs you need, and the connector types. We can help work through the details, even if you do not have a finished specification.

Discuss a custom distribution box

Plan your camp power distribution

Arrange generators, MEPDIS-R equipment and electrical loads, then review feeder cable requirements for your field installation.

Explore the camp power distribution planner
